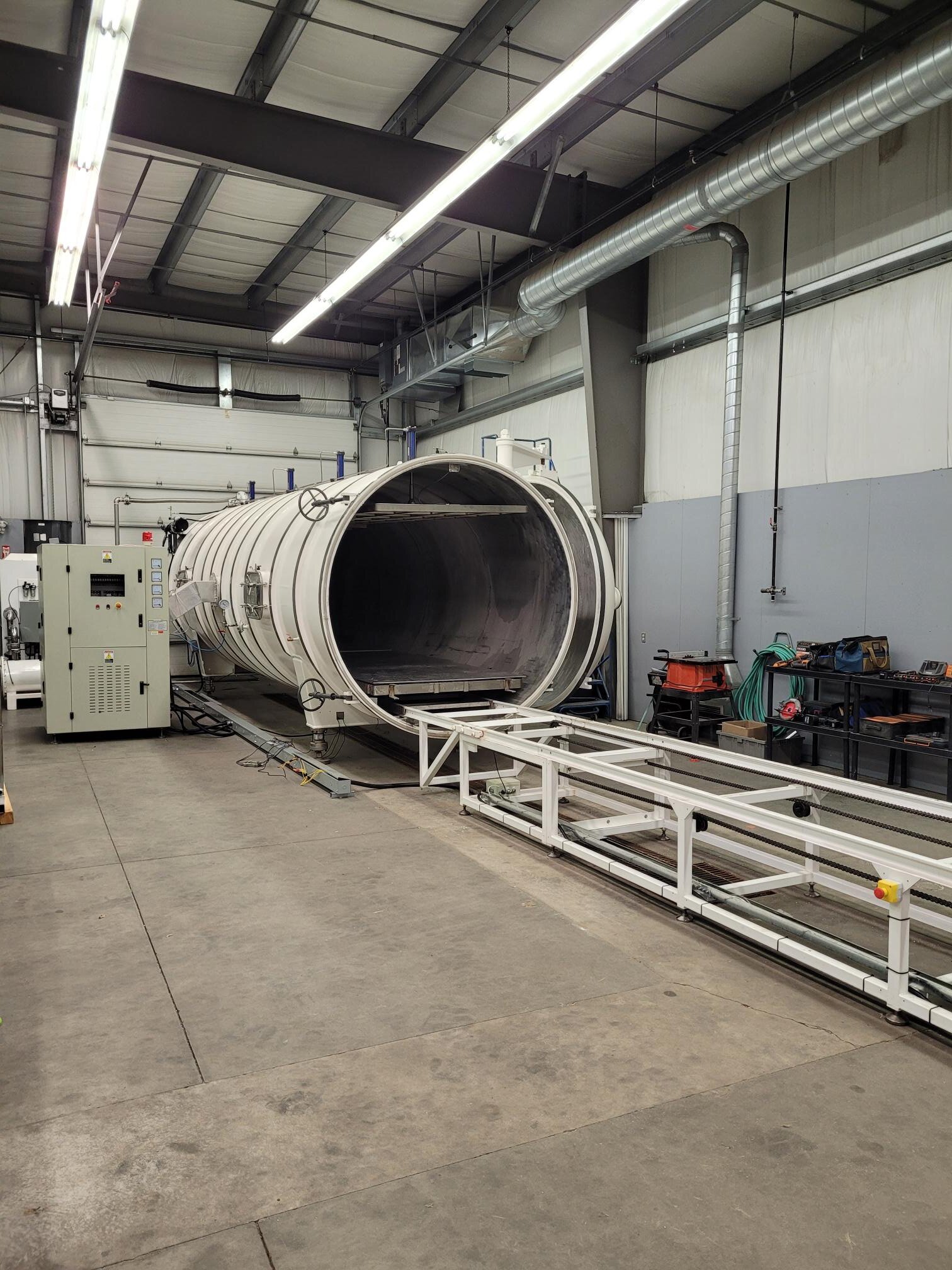

Gallery
Specifications
Power source: 480 or 600 Volt 3 phase
- Total input power: 50 Amps @ 600 Volts / 60 Amps @ 480 Volts
- Output power: 30KW
- Frequency: 6.78 MHZ
- Cooling type: Water cooled
- Protection: Current and temperature overload, electrode grounding, low air pressure, door switch override.
- Chamber Dimension: 3.0M x 1.0M x 1.0M (10ft x 3.25ft x 3.25ft)
- Drying capacity: 3 cubic metres 1,200 board feet
- Hydraulic load: 8 tonnes
- Pressure plate: 3M x 1.0M
- In feed cart: 4M x 1.0M (power assisted)
- Cooling capacity: 159960 kcal/h
- Vacuum pump: 5.5 Kw (7 HP)
- Max pressure: – 0.092MPa – 27” Hg
- Design: Evaporative cooling system comprised of stainless steel cabinet, heat exchanger, water circulation pump and exhaust fan
- PLC: Fully automated, touch screen control
- Functions: RF generator tuning, Temperature monitoring and control, Moisture content monitoring and control, Cooling system monitoring and control, Vacuum monitoring and control
- Total weight: 5 MT 11,000 pounds
- Equipment footprint: 8.8M L x 4.3M W x 2.63M H (27’L x 14’W x 9’H)
- Delivery time: 120 days from date of order
- Warranty: 1 year parts, labour and technical support. Travel time is extra.
Optional Equipment
Remote site monitoring.
