Standard Equipment

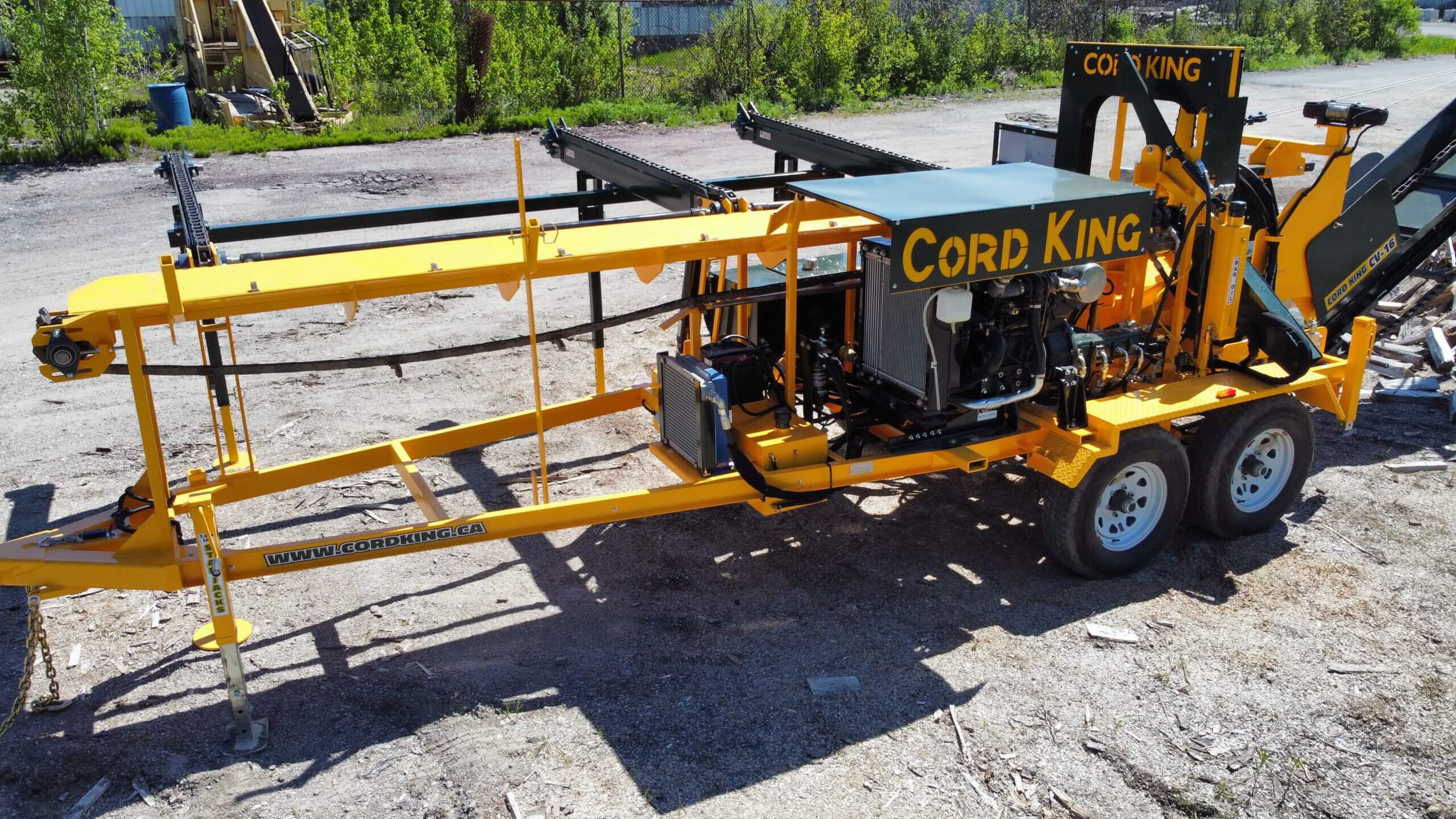

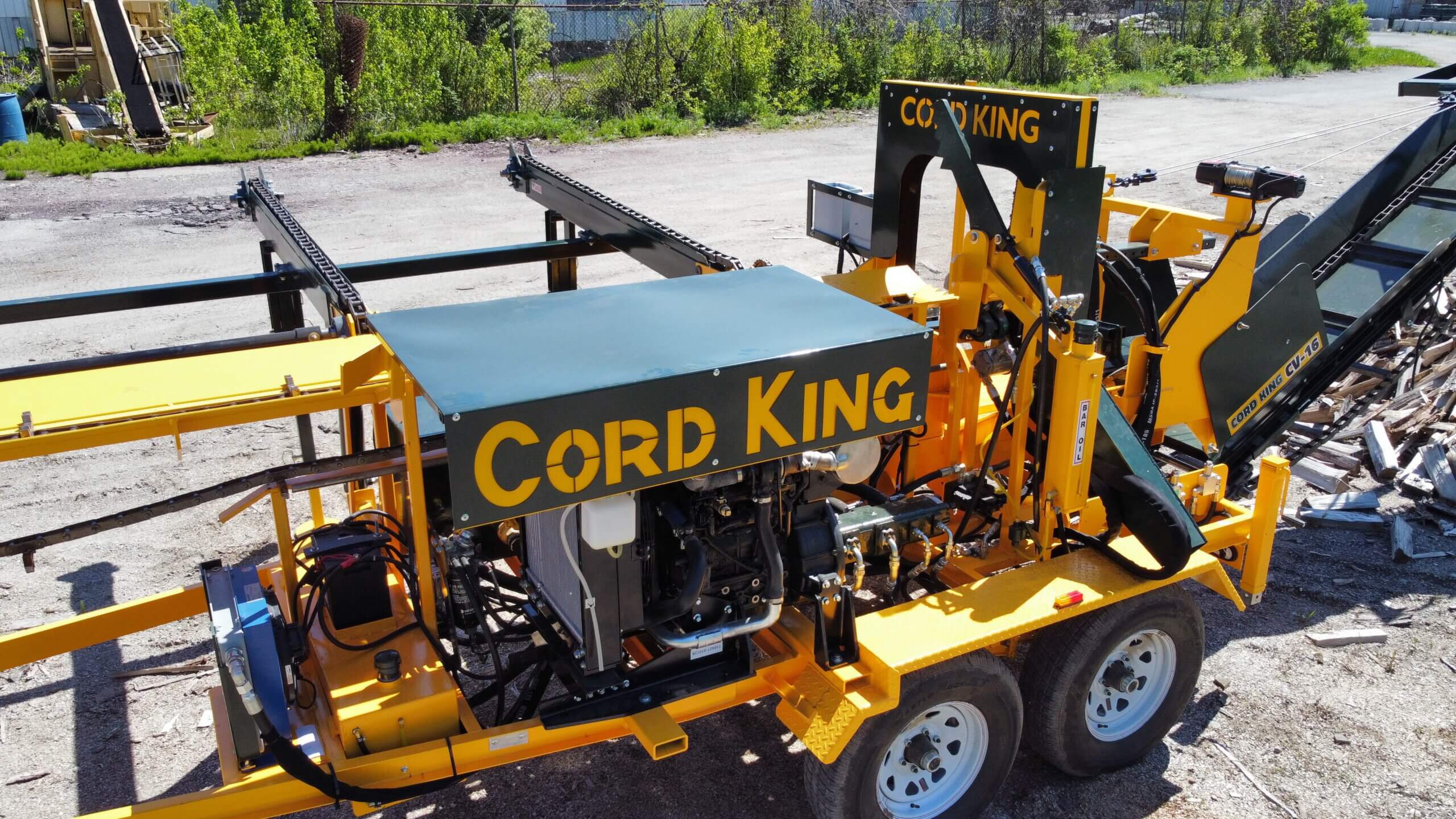

60 HP Dooson Turbo Diesel Engine
- Hydraulic-driven 404 harvester bar and chain with pressure relief system
- Electric bar oiler system with large 1 ½ gallon capacity
- 34-ton splitter force
- 6-way hydraulic adjustable star wedge or 7-way hydraulic repeater wedge
- Auto-split (1 button complete splitting cycle)
- Adjustable log length gauge

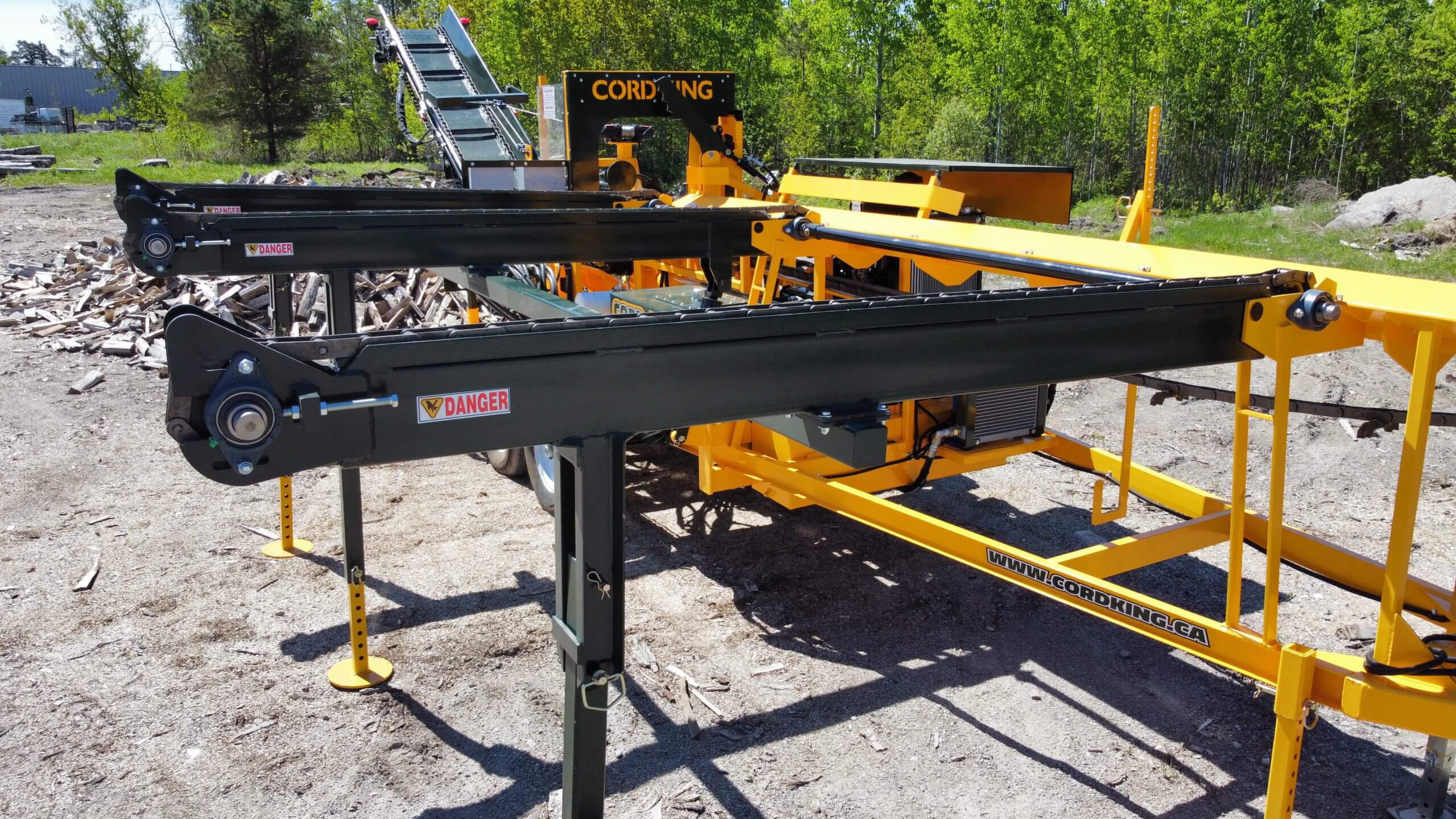

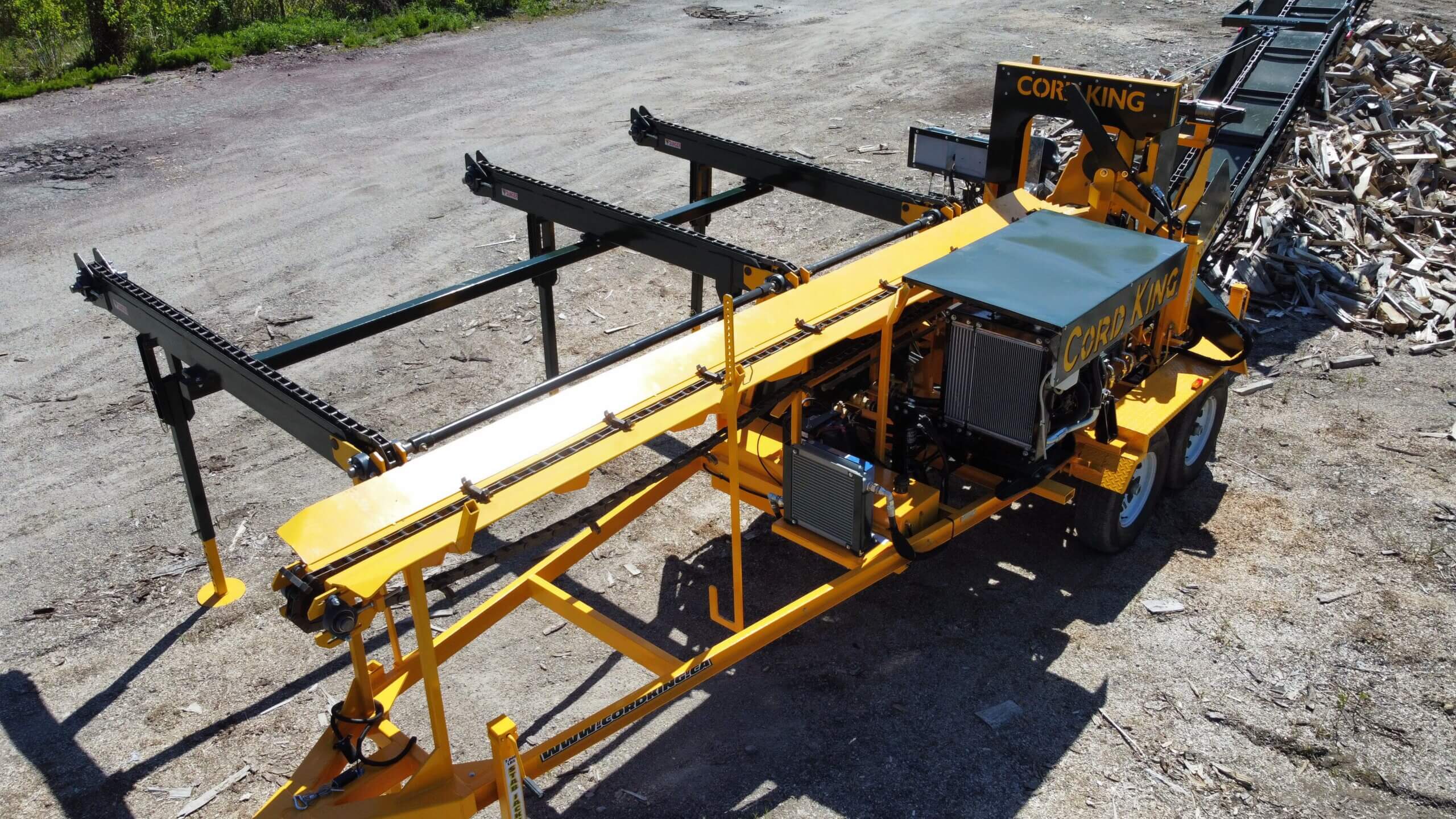

- 16′ long Infeed Conveyor with continuous chain drive feeding
- Hydraulic log stop adjustable 12-24″ length
- Hydraulic Oil Cooler: 35,000 BTU/hr
- Automatic clamping

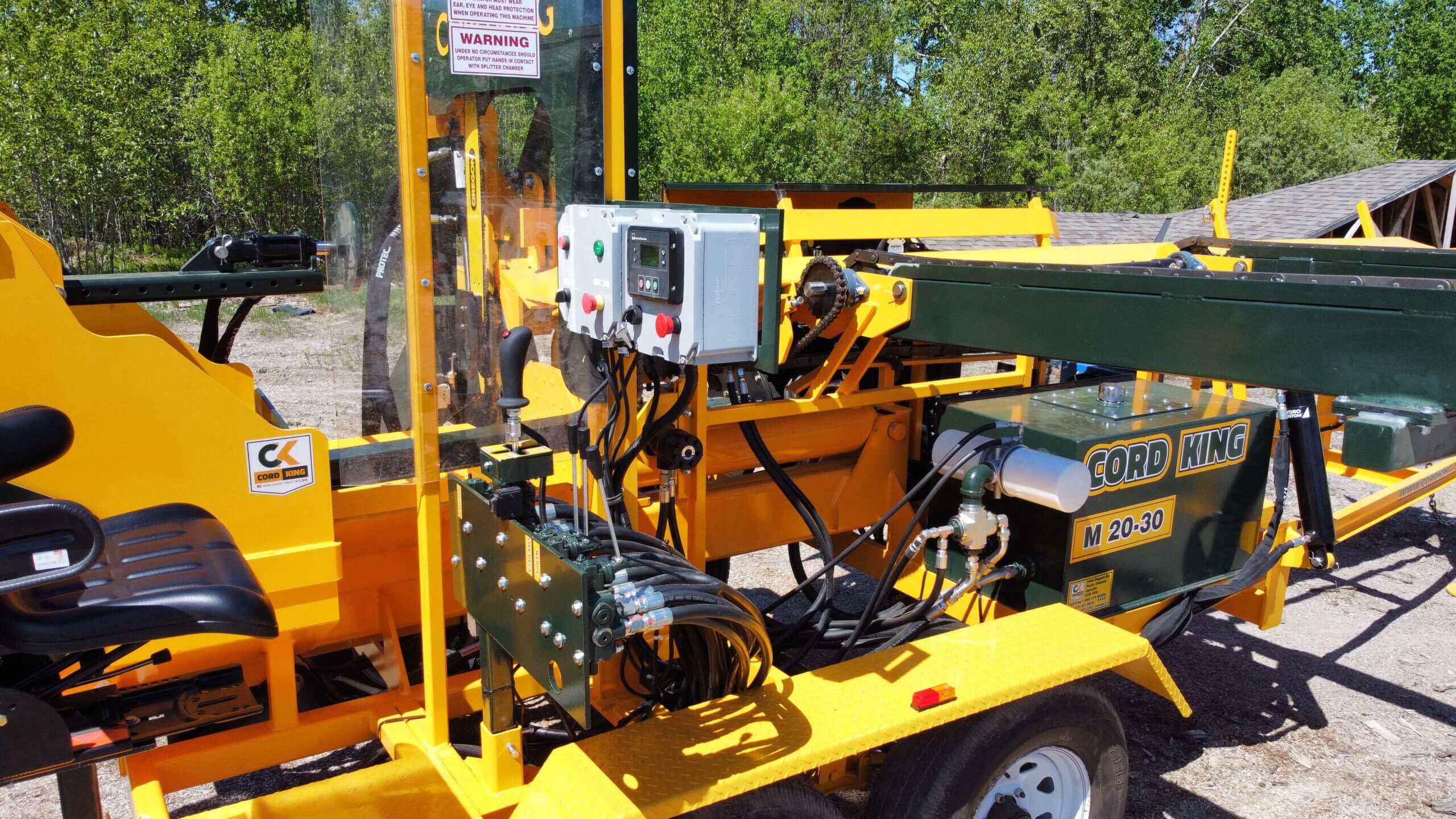

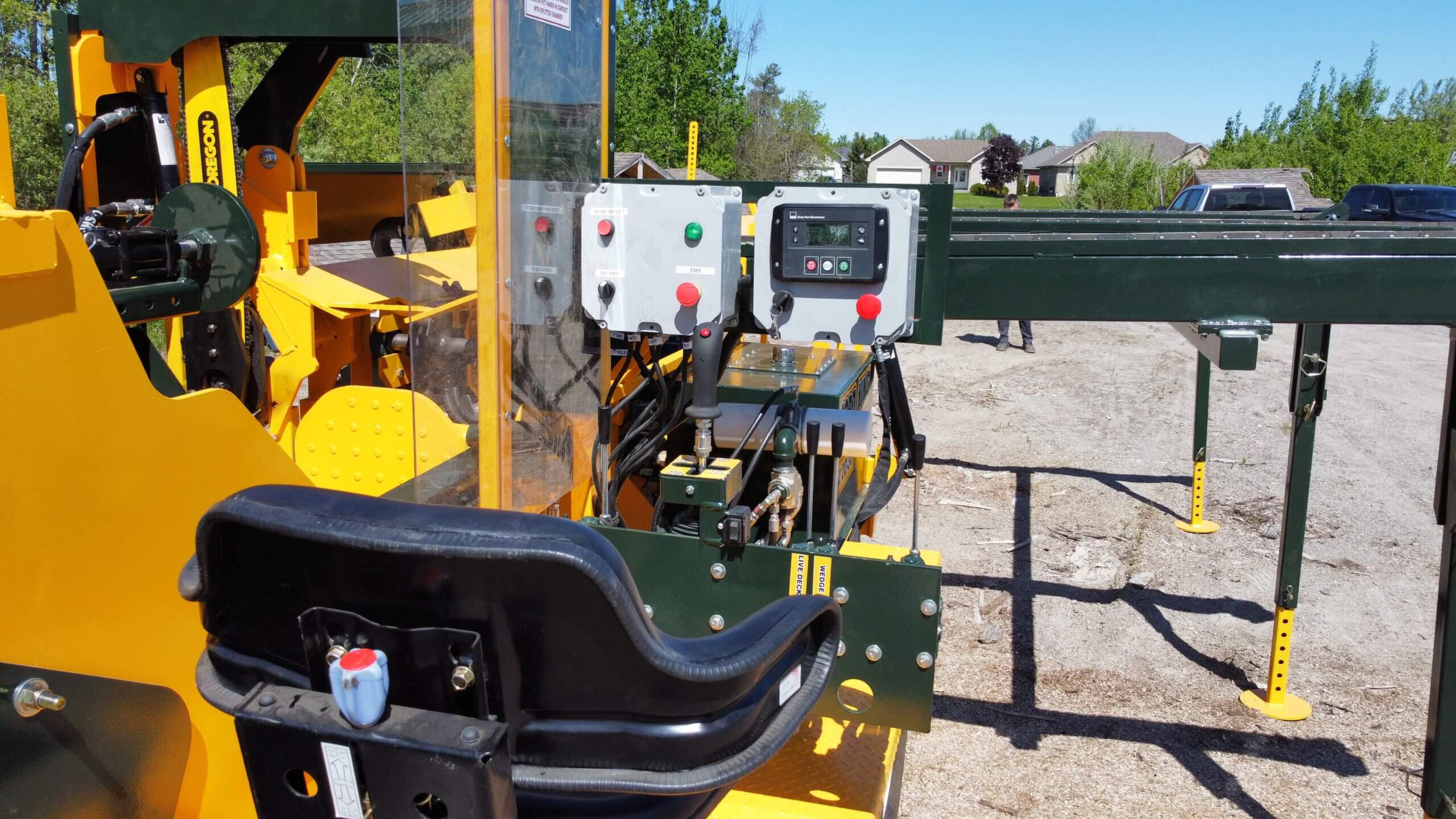

- Operator platform with deluxe seat
- Lexan safety screen for excellent visibility
- Fuel Capacity: 30-gallon fuel tank
- Hydraulic Reservoir Capacity: 55 gallons
- 12k lbs tandem axles with electric brakes and running lights
- 2 5/16″ Ball Hitch
Performance
Production Rate: up to 3 full cords/hr
- Cycle Time (cut and split): every 4 seconds
- Maximum Log Diameter: 20”
- Maximum Log Length: 30’ (butt on the deck)
- Estimated Fuel Consumption: 1.5 GPH
- Weight: 9,800 lbs
- Transport Dimensions: 7’-0” wide, 23′-0″ long, 12′-8″ high
Optional Equipment
4-, 6-, 8-, 12- or 16-way hydraulic adjustable splitting wedges
- Extended infeed conveyor to 20′
- Extra live deck legs, dual drive available
- Operator safety cage or operator canopy (roof)
- Heated operators cab
- Air conditioning with insulation package
- 24′ to 40′ stand alone offloading conveyor
- 12′ or 16′ integrated offloading conveyor
- Available with tractor PTO-Drive
- Available with a 3-phase electric motor option
